Developed by: Tandy
Launched: 1977

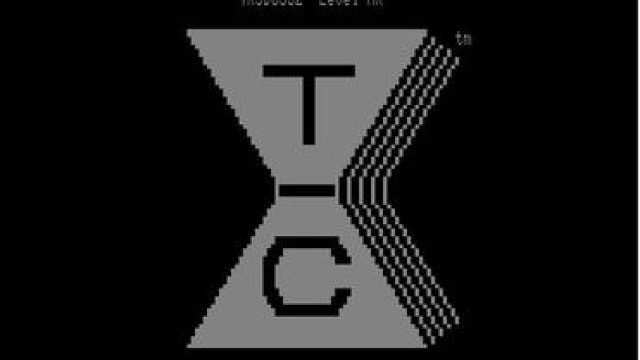

TRSDOS (Tandy Radio Shack Disk Operating System) is the operating system for the Tandy TRS-80 line of eight-bit Zilog Z80 microcomputers sold through Radio Shack from 1977 to 1991.
Tandy manuals recommended that it be pronounced triss-doss.
TRSDOS should not be confused with Tandy DOS, a version of MS-DOS licensed by Microsoft for Tandy's x86 line of personal computers (PCs).

Tandy Corporation's TRS-80 microcomputer did not have a disk drive or disk operating system at its release. The first version of TRSDOS, by Randy Cook, was so buggy that others wrote alternatives, including NewDOS and LDOS. After disputes with Cook over ownership of the source code, Tandy contracted Logical Systems, the developer of LDOS, to continue development of TRSDOS.
TRSDOS 6, distributed with the TRS-80 Model 4 in 1983, is identical to LDOS 6.00.

With the original TRS-80 Model I of 1977, TRSDOS was primarily a way to extend MBASIC (BASIC in ROM) with additional I/O commands that worked with disk files instead of the cassette tapes used by diskless Model I systems.
Later disk-equipped Model III computers used a completely different version of TRSDOS from Radio Shack, culminating in 1981 with TRSDOS Version 1.3.
Beginning in 1983, disk-equipped TRS-80 Model 4 computers used TRSDOS Version 6, which was a development of Logical Systems, Inc.'s LDOS Model III. The latter was updated in 1987 and released as LS-DOS 6.3.

Completely unrelated was a version of TRSDOS by Radio Shack for their 1979 TRS-80 Model II professional computer, also based on the Z80 and equipped with 8-inch disk drives. The later machines in this line, the Models 12, 16, and 6000, used the Z80 as an alternative CPU to their main Motorola 68000 chip and could run this version of TRSDOS for backward compatibility with older Z80 application software.

← View other operating systems

Computers that came equipped with the operating system TRSDOS


Manufacturer: Tandy
Launches: 1979
Manufactured in US
CPU: Zilog Z80 @ 4MHz
Memory: 32 KB ~ 64 KB
Support:
Hard drive: None
Operating system: TRSDOS

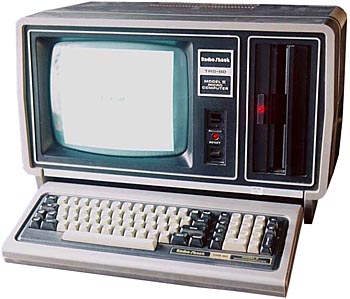

The evolution of the first model sold by RadioShack, aimed at businesses.


Manufacturer: Tandy
Launches: 1980
Manufactured in US
CPU: Zilog Z80 @ 2MHz
Memory: 4 KB ~ 48 KB
Support:
Hard drive: None
Operating system: TRSDOS

The evolution of the first model sold by RadioShack that had the integrated screen.


Manufacturer: Tandy
Launches: 1983
Manufactured in US
CPU: Zilog Z80 @ 4MHz
Memory: 64 KB ~ 128 KB
Support:
Hard drive: None
Operating system: TRSDOS

The Model 4 is fully compatible with Model III and CP/M application software. A diskless Model 4 (with 16 KB of RAM and Level II BASIC) cost $999.


Manufacturer: Tandy
Launches: 1983
Manufactured in US
CPU: Zilog Z80 @ 4MHz
Memory: 64 KB ~ 128 KB
Support: Diskette 5¼"
Support B: Diskette 5¼"
Hard drive: None
Operating system: TRSDOS

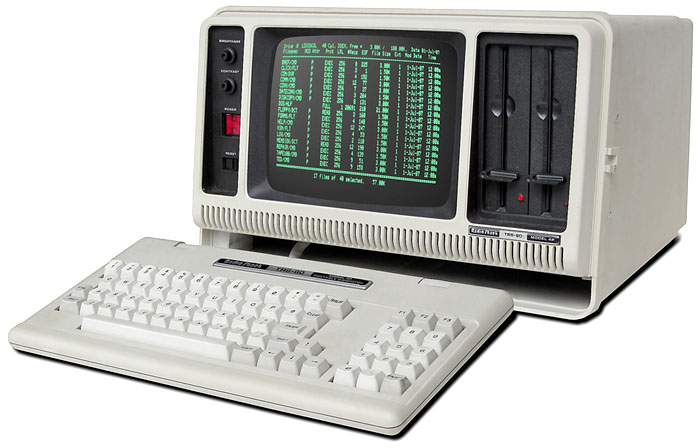

The Model 4P is a portable version introduced in September 1983 and discontinued in early 1985. It is functionally identical to the dual-drive desktop model but lacks the card-edge connector for two external floppy drives and the cassette tape interface. It has a slot for an internal modem card and could emulate a Model III.


Manufacturer: Tandy
Launches: 1985
Manufactured in US
CPU: Zilog Z80 @ 4MHz
Memory: 64 KB ~ 128 KB
Support:
Hard drive: None
Operating system: TRSDOS

The Model 4D with the Deskmate Productivity Suite included was introduced in early 1985. It has a revised CPU board using faster gate array logic and includes the floppy disk controller and RS-232C circuitry, all on a single board.
It has two internal double-sided floppy disk drives and is the last model descended from the 1977 Model I.
It retailed for $1,199 upon its introduction in 1985.
During 1987-1988, retail stores removed the Model 4D from display, but it was available by special order until 1991.
