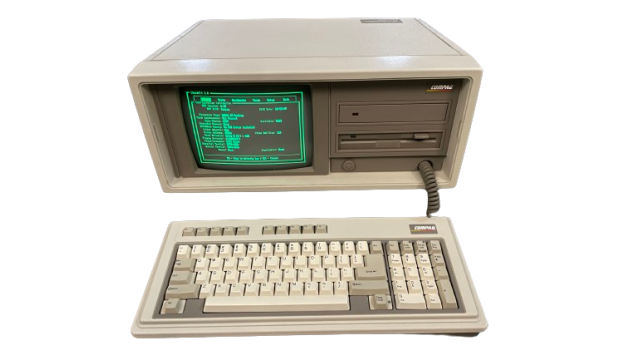

The Compaq Portable II is the fourth product in the Compaq Portable series to be released by Compaq Computer Corporation in 1986 at a price of $3499.

Technical specifications of computer Compaq Portable II

Manufactured by: Compaq
Launched: 1986
Price: 3499 USD
Manufactured in USA
CPU: Intel 80286 @ 8MHz
Memory: None
Hard drive:
Operating system: MS-DOS

The Portable II featured an 8 MHz processor and was lighter and smaller than previous Compaq Portables.

There were four models of the Compaq Portable II.

The basic Model 1 featured a 5.25" floppy disk drive and 256 KB of RAM.

The Model 2 added a second 5.25" floppy disk drive and sold for $3,599.

The Model 3 was sold with a 10MB hard drive, a 5.25" floppy disk drive, and 640KB of RAM for $4,799 at launch.

The Model 4 would upgrade the Model 3 with a 20MB hard drive and sell for $4,999.

The Compaq Portable II was significantly lighter than its predecessors; the Model 1 weighed just 23.6 pounds compared to the 30.5 pounds of the Compaq Portable 286.
Compaq only shipped the system with a small demo disk; MS-DOS 3.1 had to be purchased separately.
