Manufacturer: Motorola
Launched: 1977
Bits: 8
Clock: 1 MHz

The 6809 was a major advance over its two predecessors, the Motorola 6800 and the MOS Technology 6502. It is considered the precursor to the Motorola 68000 family of processors.

More ↓

Manufacturer: Intel
Launched: 1979
Bits: 16
Clock: 4.77 MHz
Transistors: 29 000
Technology: 3 nanometers

A reduced-cost version of the Intel 8086 with a data bus reduced to 8 bits so that it could use circuitry from previous-generation computer manufacturers and thus reduce computer costs.

More ↓

Manufacturer: Intel
Launched: 1982
Bits: 16
Clock: 6 MHz
Transistors: 134 000
Technology: 1.5 nanometers

More ↓

Manufacturer: Intel
Launched: 1985
Bits: 32
Clock: 12 MHz
Transistors: 275 000
Technology: 1.5 nanometers
Voltage: 5 V

One of the first 32-bit architecture processors.

More ↓

Manufacturer: Intel
Launched: 1989
Bits: 32
Clock: 16 MHz
Transistors: 1 200 000
Technology: 1 nanometers
Voltage: 5 V

The Intel 486 processor was the first to offer an integrated math coprocessor (FPU) that significantly accelerated computing operations.

More ↓

Manufacturer: Intel
Launched: 1993
Bits: 32
Clock: 60 MHz
Transistors: 3 100 000
Technology: 0.8 nanometers

The Pentium microprocessor had an architecture capable of executing two operations at once.
The Pentium's introduction was intended to eliminate competitors producing clone microprocessors, such as AMD (Advanced Micro Devices), which created the K5, or Cyrix, which produced very good 486s.

More ↓

Manufacturer: Intel
Launched: 1995
Bits: 32
Clock: 150 MHz
Transistors: 5 500 000
Technology: 0.5 nanometers

An evolution of the Pentium, but with RISC architecture.
It was very inexpensive, but suffered from a problem with floating-point calculations, which was called flag erratum. It was soon discontinued.

More ↓

Manufacturer: Intel
Launched: 1996
Bits: 32
Clock: 120 MHz
Transistors: 4 500 000
Technology: 0.28 nanometers
Voltage: 2.8 V

It included a set of instructions developed by Intel intended to improve processor performance in multimedia applications.
AMD, Intel's main competitor, would implement the 3DNow! floating-point instruction set.

More ↓

Manufacturer: Intel
Launched: 1997
Bits: 32
Clock: 233 MHz
Transistors: 7 500 000
Technology: 0.35 nanometers

More ↓

Manufacturer: Intel
Launched: 1999
Bits: 32
Clock: 400 MHz
Transistors: 9 500 000
Technology: 0.25 nanometers

More ↓

Manufacturer: Intel
Launched: 2000
Bits: 32
Clock: 1300 MHz
Transistors: 42 000 000
Technology: 0.18 nanometers

More ↓

Manufacturer: Intel
Launched: 2006
Bits: 64
Clock: 1060 MHz
Transistors: 151 000 000
Technology: 0.065 nanometers

It covers the Solo (single core), Duo (dual core), Quad (quad core), and Extreme lines.

More ↓

Manufacturer: Intel
Launched: 2008
Bits: 64
Clock: 2660 MHz
Transistors: 731 000 000
Technology: 0.045 nanometers

The Core i7 is the first processor to use Intel's Nehalem microarchitecture and is the successor to the Intel Core 2 family.

More ↓

Manufacturer: Intel
Launched: 2009
Bits: 64
Clock: 2660 MHz
Transistors: 774 000 000
Technology: 0.045 nanometers

Core i5 is a term used to designate mid-range or high-midrange processors from Intel. They are characterized by an affordable price and sufficient performance to be used in computers capable of running complex programs or games that require slightly more power.

The i5 family offers an average processing speed of around 3.5 GHz and a cache of around 8 MB.

More ↓

Manufacturer: Intel
Launched: 2010
Bits: 64
Clock: 2930 MHz
Transistors: 1 400 000 000
Technology: 0.032 nanometers

More ↓

Manufacturer: Intel
Launched: 2017
Bits: 64
Clock: 3300 MHz
Transistors: 3 052 000 000
Technology: 0.014 nanometers
Voltage: 1.52 V

More ↓

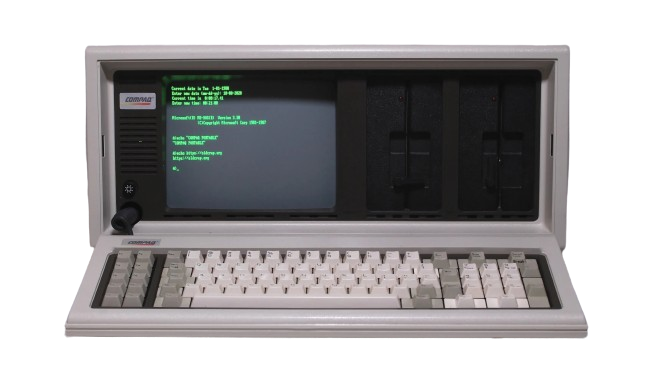

Manufacturer: Compaq
Launches: 1983
Manufactured in US
CPU: Intel 8086
Memory: None
Support:
Hard drive:
Operating system: MS-DOS
Innovations: Fue el primer ordenador 100% compatible con el IBM PC no fabricado por IBM, y aparte, fue el primer PC portable considerado un éxito económico.

This computer, about the size of a suitcase, will be the progenitor of modern portable computers, an honor shared with the Osborne 1 (which used CP/M) and the Hyperion (although it used MS-DOS as its operating system, it was not fully compatible).

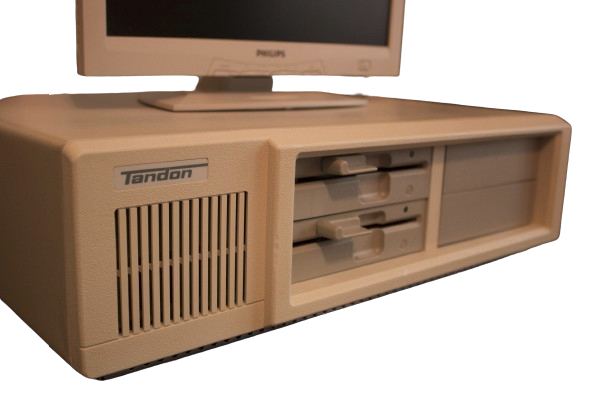

Manufacturer: Tandon
Launches: 1986
Manufactured in US
CPU: Intel 8086 @ 8MHz
Memory: 256 KB
Support: Diskette 5¼" DD
Support B: Diskette 5¼" DD
Hard drive: 10 MB
Operating system: MS-DOS 2.11

Manufacturer: Amstrad
Launches: 1986
CPU: Intel 8086 @ 8MHz
Memory: 512 KB ~ 640 KB
Support: Diskette 5¼" DD
Support B: Diskette 5¼" DD
Hard drive: None
Operating system: MS-DOS 3.2

It could be purchased with a color (CM) or monochrome (MM) monitor.
And with floppy disk drives for low-density (PC1512SD) or double-density (PC1512DD) disks.
This computer initially didn't have a hard drive, but one could be included. Its floppy disk drives could also be replaced with high-density ones.

The keyboard:

When Amstrad manufactured the PC1512 in 1986, it was careful to avoid any conflict with IBM and made sure not to infringe any of IBM's patents on the IBM PC. In fact, there were very few patents registered other than the keyboard interface.

Therefore, Amstrad designed a new keyboard interface that was quite different (and therefore incompatible) with the IBM interface. The connector and protocols were different, so an Amstrad keyboard cannot be used (even with an adapter) with an IBM PC, or vice versa.

The proprietary keyboard interface was used on all machines in the 1000, 2000, 3000 and 4000 series. Later (from the 5000 series onwards), Amstrad followed what had become common practice and switched to the IBM PS/2 keyboard interface.

Manufacturer: Amstrad
Launches: 1986
Manufactured in GB
CPU: Intel 8086 @ 8MHz
Memory: 640 KB
Support: Diskette 5¼"
Hard drive: None
Operating system: MS-DOS 3.2

This was an update to the previous model, the PC1512, which increased the RAM to 640 KB and incorporated EGA graphics.

There was a version with a dual 5.5-inch floppy disk drive or a hard drive (PC1640HD20).

Manufacturer: IBM
Launches: 1987
Manufactured in US
CPU: Intel 8086 @ 8MHz
Memory: 512 KB
Support:
Hard drive:
Operating system: PC DOS

It was released a few months after the Model 30. Designed as a low-cost model for the home, it eliminated the MicroChannel bus and replaced it with the previous ISA bus so that users could use more common and cheaper cards.

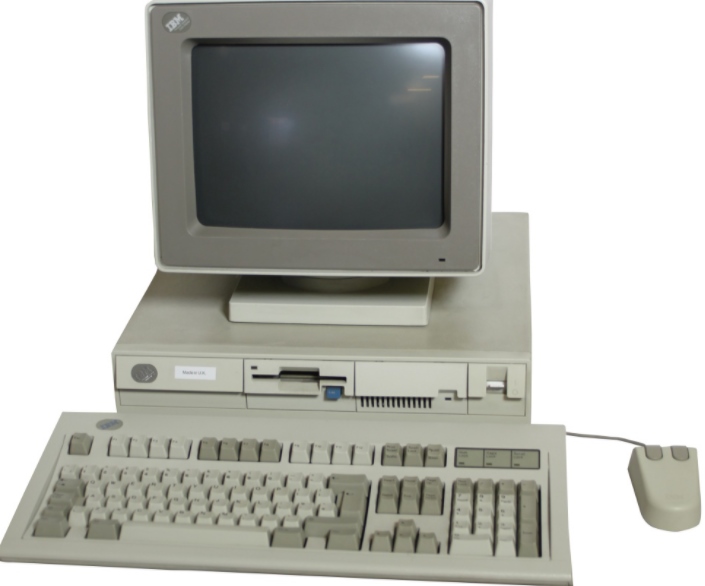

Manufacturer: IBM
Launches: 1987
Manufactured in US
CPU: Intel 8086
Memory: 640 KB
Support: Diskette 3½"
Hard drive: 20 MB
Operating system: PC DOS 3,3
Innovations: Introdujeron el bus MCA, y la conexión
para la interfaz de teclado y mouse, que se llamó también "PS/2".

La interfaz de teclado PS/2 es electrónicamente idéntica a la ampliamente usada PC/AT, pero en lugar del conector DIN de 5 pines se usa un conector mini-DIN de 6 pines.
La interfaz del ratón es físicamente idéntica, pero muy diferente de la RS-232 usada hasta entonces.
Para ambos conectores existían adaptadores.
Y como ambos conectores (de teclado y ratón) eran idénticos, Microsoft, con la norma PC 97, les asignó ser coloreados con diferentes colores.

Hoy en día la conexión de estos periféricos ha sido sustituida casi completamente por USB.

Tambíen fueron los introductores del nuevo estándar de vídeo VGA.

Manufacturer: Amstrad
Launches: 1988
Manufactured in GB
CPU: Intel 8086
Memory: None
Support:
Hard drive:
Operating system: MS-DOS 3.30

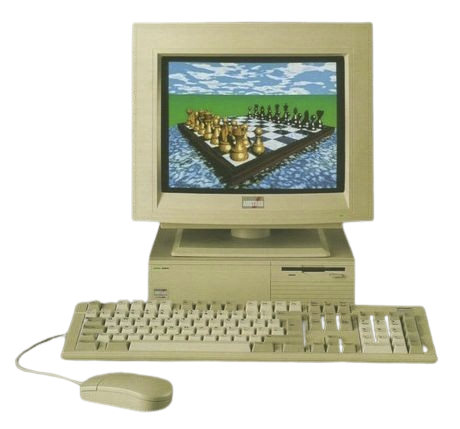

Manufacturer: Amstrad
Launches: 1991
CPU: Intel 8086 @ 8MHz
Memory: 640 KB
Support:
Hard drive: 40 MB
Operating system: MS-DOS 3.3
